CMX Series Weather proof common mode noise filter for ham radio-[Insight Engineering]

high performance common mode noise filters

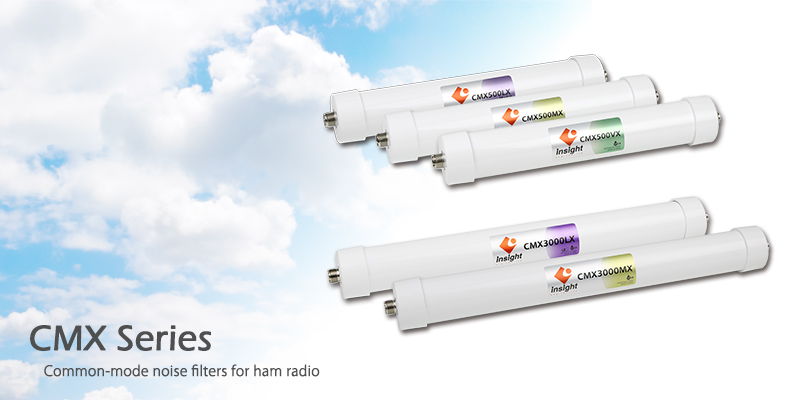

CMX Series are unique common mode noise filter(also as common mode choke, EMI/RFI filter, line isolator, noise suppressor) great for noise reduction. High impedance filters great for noise reduction and have very low insertion loss. All CMX Series products are weather proof, can be installed outside. CMX Series products have extreme long time durability by polyurethane coating, even in hard environments. CMX Series products are band specified, can be selected depend on the band you use. 500W/3kW model are currently available.

　CMX500LX Mark II
　Weather proof common mode noise filter for HF band

Weather proof, high impedance common mode noise filter
-Peak impedance frequency of 5.2MHz great for 1.9 to 10MHz band.

Effective frequency range:1.9 to 10MHz
Power rating:500W(PEP/SSB)/Connector type:SO-239 Female
Diameter-length:48mm-300mm(1.9"-11.8")

EAN：4589933860319

　CMX500MX
　Weather proof common mode noise filter for HF/50MHz band

Weather proof, high impedance common mode noise filter
-Peak impedance frequency of 14.0MHz great for 14 to 28MHz band.

Effective frequency range:14 to 28MHz
Power rating:500W(PEP/SSB)/Connector type:SO-239 Female
Diameter-length:48mm-300mm(1.9"-11.8")

EAN：4589933860333

　CMX500VX
　Weather proof common mode noise filter for 50MHz band

Weather proof, high impedance common mode noise filter
-Peak impedance frequency of 49.9MHz great for 50MHz band.

Effective frequency range:50 to 54MHz
Power rating:500W(PEP/SSB)/Connector type:SO-239 Female
Diameter-length:48mm-300mm(1.9"-11.8")

EAN：4589933860357

For High-power users

　CMX3000LX
　Weather proof common mode noise filter for HF band

Weather proof, high impedance common mode noise filter
-Peak impedance frequency of 6.3MHz great for 1.9 to 10MHz band.
-Low insertion loss of <0.1dB by silver plated wire
-High-power durability

Effective frequency range:1.9 to 10MHz
Power rating:3000W(PEP/SSB),1kW Continuous/Connector type:SO-239 Female
Diameter-length:48mm-420mm(1.9"-16.1")


	EAN：4589933860326

　CMX3000MX
　Weather proof common mode noise filter for HF/50MHz band

Weather proof, high impedance common mode noise filter
-Peak impedance frequency of 14.1MHz great for 14 to 28MHz band.
-Low insertion loss of <0.15dB by silver plated wire
-High-power durability

Effective frequency range:14 to 28MHz
Power rating:3000W(PEP/SSB),1kW Continuous/Connector type:SO-239 Female
Diameter-length:48mm-420mm(1.9"-16.1")


	EAN：4589933860340

Using CMX series filters

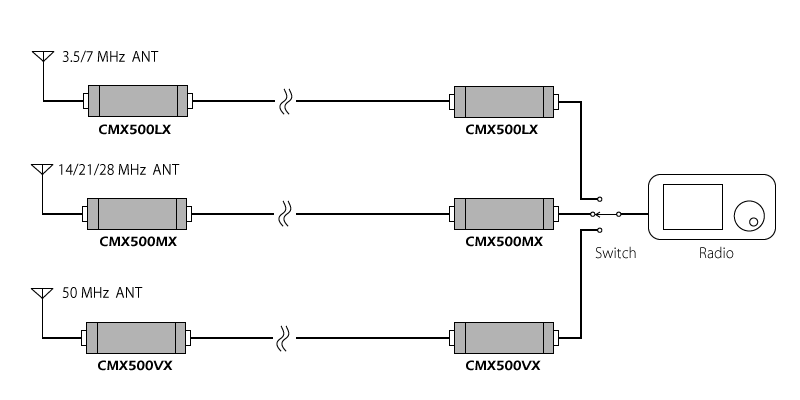

CMX series are band specified, can be installed both antenna and radio end of coax.

Using CMX series filters with Amp and Radio

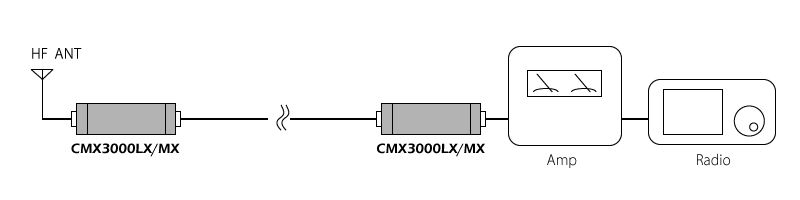

CMX3000 series common mode noise filter can be installed in series at both antenna and radio end of coax.
For tough noise, CMX500 series can be installed between an amp and a radio too.

We have also products like..

high performance common mode noise filters

For High-power users

Using CMX series filters

Using CMX series filters with Amp and Radio CMX3000 series common mode noise filter can be installed in series at both antenna and radio end of coax. For tough noise, CMX500 series can be installed between an amp and a radio too.

Using CMX series filters with Amp and Radio
CMX3000 series common mode noise filter can be installed in series at both antenna and radio end of coax.
For tough noise, CMX500 series can be installed between an amp and a radio too.
